DNC 4-in-1 breathable hi-vis jacket with vest and tape

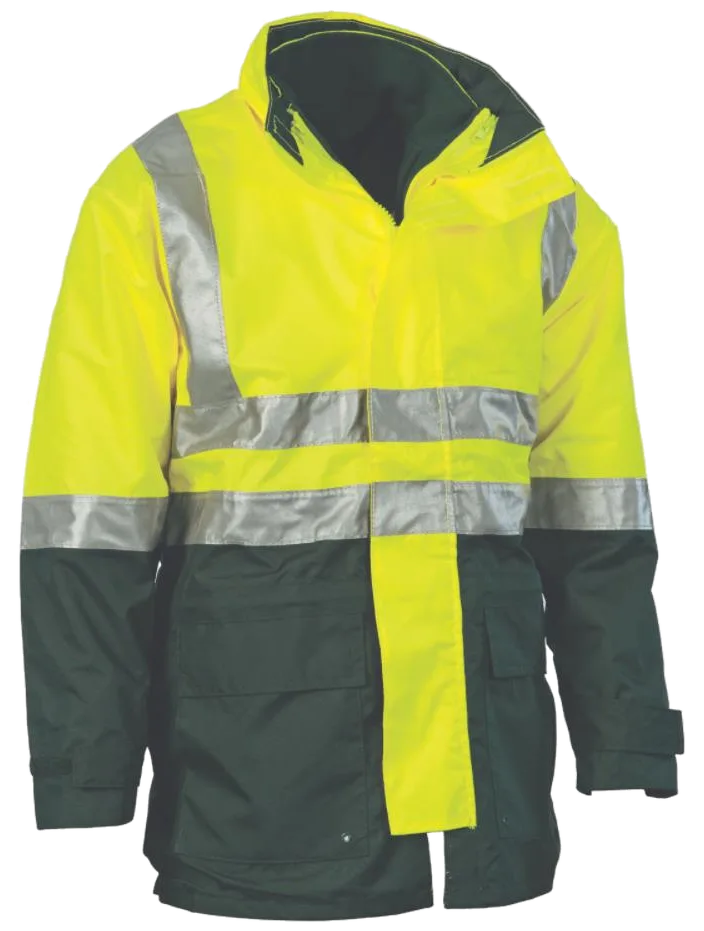

The DNC 4-in-1 Breathable Hi Vis Jacket with Vest and Tape (3864) is an Australian-made all-weather system: a waterproof outer shell with a removable insulated vest. Certified to AS/NZS 4602.1:2011 Class D/N with genuine 3M 8906 reflective tape, the jacket covers the range of Australian working conditions, from wet winter storms to cool dry mornings. The seam-sealed waterproof construction with breathable fabric protects during sustained rain exposure, while the substantial vest delivers insulation adequate for standalone wear in dry, cool conditions.

The 300D polyester outer shell with polyurethane coating and fully sealed seams creates a waterproof barrier suitable for extended work in moderate-to-heavy rain, the level of protection roadwork crews, civil construction workers and outdoor trades actually need rather than light water-resistance that fails during the first serious downpour. The breathable fabric construction allows moisture vapour to escape, addressing the condensation buildup that leaves workers soaked from internal perspiration in non-breathable rain gear. The genuine 3M 8906 Silver reflective tape provides night-time visibility performance superior to generic reflective materials.

The four configurations remove the need for multiple separate garments: wear the waterproof shell alone for rain protection without cold, the insulated vest alone for dry cool conditions, the complete system for wet and cold together, or remove both when conditions warm. That adaptability suits Australian work environments where the weather turns during a shift, clear mornings becoming rainy afternoons or cool starts warming substantially by midday. The foldaway hood conceals completely when not needed, eliminating snag hazards while remaining instantly deployable when rain begins. DNC's Australian manufacturing covers construction quality and sizing consistency, with design features built around actual Australian work conditions.

Understanding the 4-in-1 system

Step 1: master the four configuration options. The DNC 3864 provides four distinct wearing configurations: (1) shell only, the waterproof outer worn alone for wet conditions without extreme cold (10°C+ with rain); (2) vest only, the insulated vest worn standalone for dry, cool conditions requiring visibility (8-15°C without precipitation); (3) complete system, the vest zipped into the shell for cold, wet conditions (below 10°C with rain or wind); (4) neither component, remove both when conditions warm. Knowing which configuration suits the current weather keeps you comfortable and compliant, and the system adapts to changing conditions across shifts and seasons without buying more than one jacket.

Step 2: inspect waterproof integrity and compliance. Before each wear, examine the outer shell's waterproof coating for cracks, peeling or delamination; damaged coatings show as flaking areas or visible separation. Check all taped seams to ensure the tape remains firmly adhered without gaps or lifting edges. Inspect the 3M 8906 reflective tape on both shell and vest for integrity, adhesion and retroreflectivity by shining a torch from 10 metres in low light to verify bright, uniform reflection. Verify the fluorescent fabric keeps its colour on both components, test the zippers for smooth operation, and check the foldaway hood deploys and retracts properly. Any damage or non-compliance means removing the garment from service, because a compromised waterproof jacket gives false security during rain exposure.

Daily wearing and weather adaptation

Step 3: deploy the right configuration for the conditions. Match the configuration to current and forecast weather. For light-to-moderate rain without cold, wear the shell alone, since the breathable waterproof fabric sheds rain without overheating. For cool, dry mornings, wear the vest only, which comes off easily as temperatures rise without leaving a bulky shell to store. For sustained rain in cold conditions, zip the vest into the shell and use the weather protection features (cuff adjustments, hem drawcord, hood). Deploy the hood when rain begins and adjust it for a secure fit that stops wind catching it or water dripping into your face. The hood accommodates hard hats when loosely adjusted, though dedicated hard hat rain covers hold position better.

Step 4: use the weather sealing features. In wet conditions, fasten the main zipper completely and secure the storm flap over it, so two layers block water coming through the zipper teeth. Adjust the wrist cuffs with the hook-and-loop closures to seal out rain running up your sleeves during overhead work. Tighten the internal hem drawcord to seal against wind and stop the jacket riding up, which would expose your lower back and obscure reflective tape. Use the two-way zipper's bottom opening when sitting or wearing a tool belt to prevent uncomfortable bunching. Partial use of these features gives partial protection; using all of them creates the full weather barrier.

Care for waterproof performance

Step 5: launder to preserve waterproof and reflective properties. Wash the shell and vest separately in cold water with a mild liquid detergent made for technical outerwear, avoiding powder detergents that leave residues. Turn both components inside out before washing, and remove the vest from the shell so both clean thoroughly. Never use fabric softeners, bleach or stain treatments, which destroy waterproof coatings, damage fluorescent dyes and can compromise the 3M tape adhesive. Wash separately from garments with Velcro or rough textures, on a gentle cycle with enough water for complete rinsing. Air dry hanging and never tumble dry, as heat damages polyurethane waterproof coatings. Store the garment completely dry in a cool, dark, ventilated place away from chemicals and direct sunlight.

Step 6: monitor and restore the DWR treatment. After 20-30 wash cycles, when water no longer beads and rolls off but soaks into the outer fabric face, the durable water repellent (DWR) treatment needs renewing. Use a technical DWR spray or wash-in treatment made for breathable waterproof garments and follow the manufacturer instructions precisely. Proper reproofing restores water-shedding properties and extends functional service life significantly. Reproofing only restores the surface treatment, though: if the underlying polyurethane coating has delaminated or cracked, reproofing will not bring back waterproof integrity. Assess the coating condition regularly and plan replacement when waterproofing fails beyond what reproofing can restore.

Common mistakes to avoid

• Using fabric softener: permanently damages waterproof and breathable properties
• Tumble drying: heat destroys the polyurethane waterproof coating
• Ignoring DWR failure: allows fabric "wetting out" that eliminates breathability
• Partial weather sealing: unsealed cuffs and hem let water in and negate the waterproof shell
• Storing while damp: encourages mildew growth causing permanent odours
• Wearing non-hi-vis under the shell: may compromise Class D/N compliance when the shell is removed
