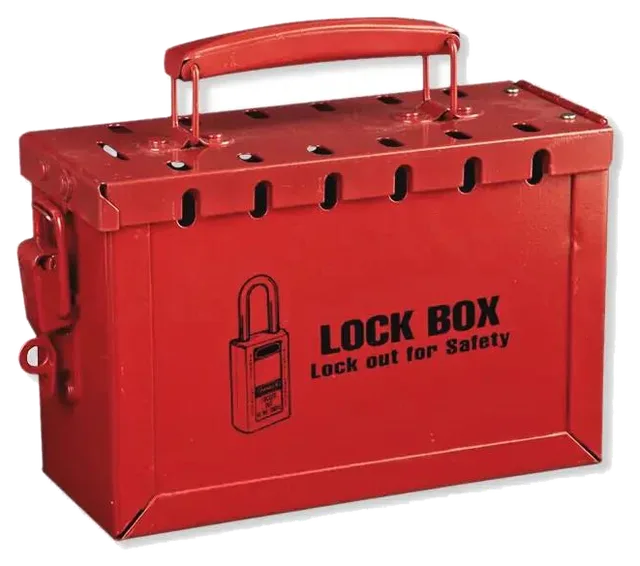

Archford 12 padlock red metal lockout box

The Archford 12 Padlock Red Metal Lockout Box is a group lockout/tagout (LOTO) device for equipment maintenance and repair work. The portable box lets several workers secure their personal safety padlocks in one central place, which protects the crew against unexpected equipment energisation. Compliant with Australian Work Health and Safety (WHS) regulations and AS 4024.1603-2006 standards, the metal box accommodates up to 12 individual padlocks, so it suits large equipment servicing where several tradespeople need simultaneous access control.

The box is built from durable red metal with a secure locking mechanism, and it is used in lockout/tagout programs across manufacturing, mining, construction and utilities. The high-visibility red colour identifies the device as safety equipment on sight, and the portable design with an integrated carry handle allows easy transportation between job sites and equipment locations.

Buy the Archford 12 Padlock Red Metal Lockout Box at Done Right Safety

Group lockout with the 12 Padlock Red Metal Lockout Box follows a set sequence. Work through these steps before anyone starts work on the equipment:

1. Prepare for Equipment Shutdown: Before beginning any lockout procedure, notify all affected employees that equipment will be shut down for maintenance. Identify all energy sources (electrical, mechanical, hydraulic, pneumatic, chemical, thermal, gravitational) that power or control the equipment. Review the equipment-specific lockout procedure and ensure all necessary tools and lockout devices are available.
2. Shut Down Equipment Properly: Follow the manufacturer's normal shutdown procedures to safely power down the equipment. Ensure all moving parts have come to a complete stop and that no residual energy remains in the system. This may involve allowing systems to cool down, releasing pressure, or discharging capacitors depending on the equipment type.
3. Isolate Energy Sources: Operate all isolation devices (circuit breakers, disconnect switches, valves, etc.) to physically separate the equipment from all energy sources. Each energy input must be controlled by a physical isolation device. For the main energy isolation point, insert the keys or access controls into the lockout box.
4. Secure the Lockout Box: Place the energy isolation device keys or switch controls inside the 12 Padlock Red Metal Lockout Box. Close the lockout box securely. Each authorised worker involved in the maintenance task must then apply their personal safety padlock to one of the 12 hasp positions on the box. This ensures that no single worker can restore energy until all workers have completed their tasks and removed their individual locks.
5. Apply Personal Padlocks and Tags: Each worker must attach their own uniquely identified safety padlock to the lockout box. Attach a durable lockout tag to each padlock displaying the worker's name, department, date, reason for lockout, and expected duration. Tags provide critical information and serve as a communication tool for all personnel.
6. Verify Energy Isolation: After all lockout devices are applied, attempt to operate the equipment using normal starting controls to verify that all energy sources are effectively isolated. Test for residual energy with the correct test instruments and gauges. Only proceed with work after confirming zero energy state.
7. Perform Maintenance Safely: With energy isolation verified, authorised workers can safely perform maintenance, repair, or servicing tasks. Throughout the work, remain vigilant for any signs of energy restoration or unexpected equipment movement.
8. Remove Lockout Devices Properly: When work is complete, each worker must personally remove their own padlock from the lockout box only after ensuring their work area is safe. Once all individual padlocks are removed, the last authorised person can remove the lockout box and restore energy following proper commissioning procedures. Never remove another worker's lock unless following strict emergency removal protocols.

Best practice on site

• Conduct regular lockout/tagout training for all authorised and affected employees
• Inspect the lockout box before each use for damage or wear
• Maintain a log of lockout box usage for compliance documentation
• Store the lockout box in a designated, easily accessible location
• Use standardised lockout procedures for consistency across the organisation
• Never bypass or defeat lockout devices under any circumstances

Common Mistakes to Avoid

• Removing Another Worker's Lock: Each worker must remove only their own padlock
• Skipping Energy Verification: Always test for zero energy before beginning work
• Inadequate Communication: Notify all affected personnel before initiating lockout
• Incomplete Energy Isolation: Identify and control all energy sources, not just primary power
• Rushing Lockout Procedures: Take time to implement lockout correctly every time

When to Use the 12 Padlock Red Metal Lockout Box

Manufacturing Facilities

In manufacturing environments, production equipment often requires maintenance by multiple specialised tradespeople including electricians, mechanics, hydraulic technicians, and pneumatic specialists. The 12 Padlock Lockout Box enables group lockout of manufacturing lines, CNC machines, conveyor systems, robotic cells, and process equipment where multiple energy sources and multiple workers create complex isolation scenarios.

Electrical Switchboard Maintenance

Electrical switchboards and distribution panels supply power to multiple circuits and equipment. When performing maintenance, upgrades, or troubleshooting on switchboards, the lockout box secures the main isolation switch keys, preventing energisation while multiple electricians work on different circuits simultaneously. The same applies in commercial buildings, industrial facilities and utility substations.

Mining Operations

Mining equipment includes some of the largest and most complex machinery requiring maintenance. Haul trucks, crushers, conveyors, and processing equipment often need simultaneous work by multiple trades. The portable lockout box can be transported throughout mining sites, from pit operations to processing facilities, ensuring coordinated lockout across extensive mining operations.

Construction Projects

Construction sites use heavy equipment including cranes, concrete pumps, excavators, and temporary electrical installations. The portable design of this lockout box makes it ideal for construction environments where equipment moves regularly and multiple contractors may be working on the same machinery.

Utilities and Infrastructure

Water treatment plants, sewage facilities, power generation stations, and distribution networks require complex lockout procedures involving multiple systems and multiple qualified personnel. The 12 Padlock Lockout Box facilitates coordinated isolation of pumps, motors, valves, and control systems during maintenance outages.

Food Processing Plants

Food and beverage manufacturing facilities operate continuous processing lines with numerous interconnected machines. During sanitation procedures, equipment upgrades, or mechanical repairs, group lockout using the portable lockout box ensures that production lines remain safely isolated while multiple workers perform concurrent tasks.

Matching the device to your crew size

Choose the 12 Padlock Red Metal Lockout Box if:

• You regularly have 7 or more workers performing simultaneous maintenance
• You need a portable solution for multiple job sites or equipment locations
• You require secure storage for isolation device keys or controls
• You work on large, complex equipment with multiple energy sources
• You need maximum capacity for future workforce expansion

Choose a 6 Padlock Lockout Box if:

• Your typical maintenance crews consist of 3-6 workers
• You have budget constraints but need group lockout capability
• Your equipment doesn't require as many concurrent workers

Choose a Portable Group Lockout Hasp if:

• You only need basic multi-point lockout without key storage
• You're locking out single isolation points with multiple padlocks
• You need a lightweight, highly portable solution
• You have very limited budget but need group lockout capability
